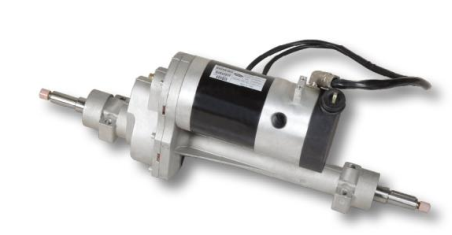

24V 180W DC Transaxle
Product Name : 24V 180W DC Transaxle
Product Intro : 1.Product No:HQ-017B. 2.Operating voltage:24V.DC. 3.Output power:180W.
Product Intro : 1.Product No:HQ-017B. 2.Operating voltage:24V.DC. 3.Output power:180W.
Specifications :
Description : Transaxle
Part Number : HQ-017B
Operating Voltage : 24VDC
Output Power : 180W
No-load Current : 4A
Motor Speed ¡À5% : 3600RPM
No-load Output Speed : 235RPM
Gear Ratio : 17.75:1
Sound Level : 62(dB(A)
Brake Torque : 3Nm(Brake)
Gearmotor Rated Torque : 10Nm
Motor OD : ¦µ68mm
Output Shaft OD : ¦µ19mm
Weight : 7Kg
Size : 580*270*220mm
